What Are the Parts of Hydraulic Cylinder?

What Are the Parts of Hydraulic Cylinder?

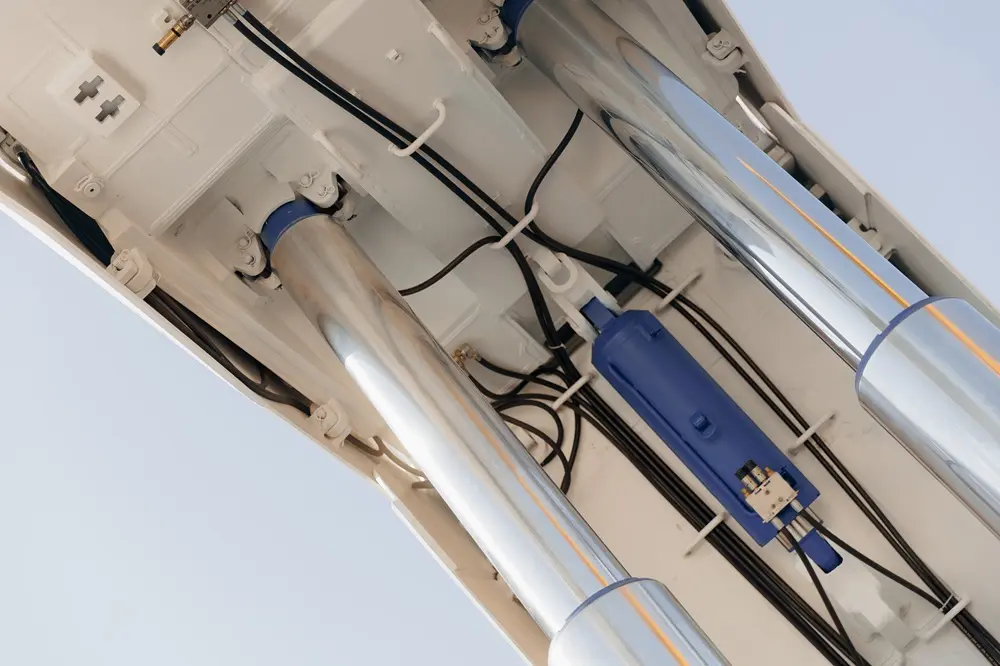

Hydraulic cylinders are powerful components found in countless machines. They transform the energy of pressurized fluid into controlled linear movement.

If you use equipment that relies on hydraulics, understanding the parts of a cylinder is crucial for proper maintenance and operation. This guide will explain those components and the importance of maintaining proper pressure within the hydraulic system.

Just in сase: Experiencing downtime because of a failed hydraulic cylinder in the Chicago area? Cylinders, Inc. is here to help. As leading experts in hydraulic cylinder repair, we offer quick and reliable solutions to get your equipment operational again.

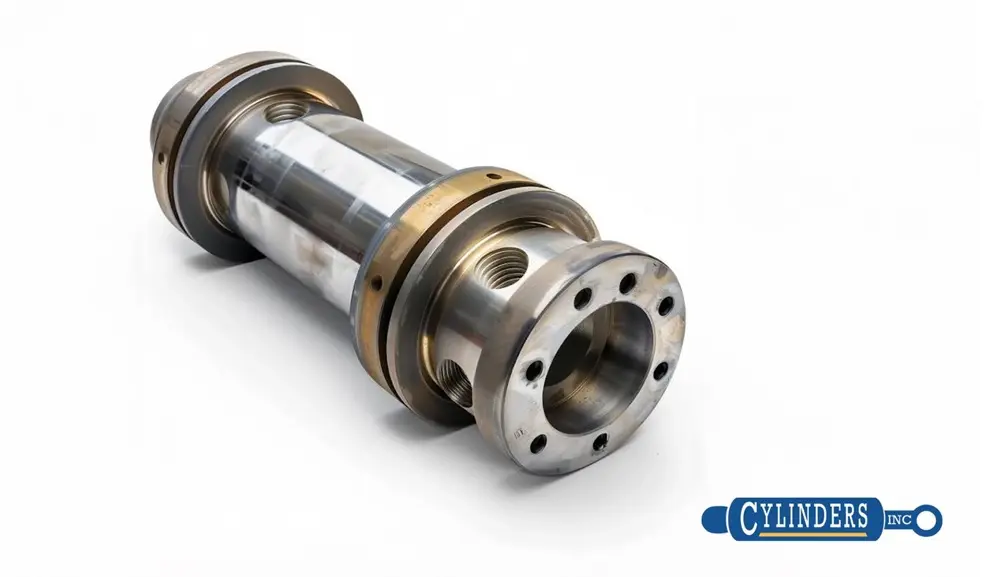

Cylinder Barrel

What Is a Cylinder Barrel?

  • The core component: The cylinder barrel, formed from a strong, seamless steel tube, serves as the main housing of a hydraulic cylinder.
  • Housing the action: This is where the piston slides, its movement driven by the force of hydraulic pressure.
  • Smoothness is key: The interior of the barrel (the cylinder walls) undergoes a honing process to ensure a perfectly smooth surface. This smoothness is crucial for the piston's efficient movement and optimal seal performance.

Why the Cylinder Barrel Matters

  • Strength under pressure: The cylinder barrel must be able to withstand the intense internal pressures of a hydraulic system without failing.
  • Heart of the system: It houses all the critical internal components that enable the hydraulic cylinder to function.

Additional Notes

  • Materials: While steel is the standard, some specialized applications may call for cylinder barrels made from aluminum or composite materials.
  • Size matters: Cylinder barrels come in a wide range of sizes to match the specific needs of the machine and the tasks they perform.

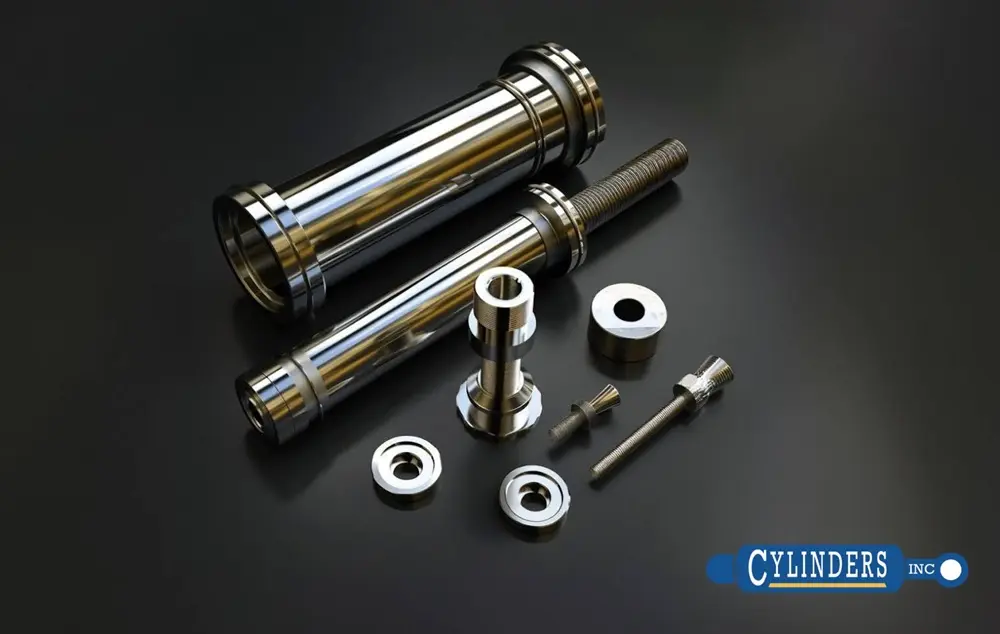

Piston and Piston Rod

What Is a Piston?

  • The force translator: The piston, a disc-shaped component, resides within the cylinder barrel. It's responsible for converting the force of hydraulic pressure into linear motion.
  • Seals matter: Piston seals are critical; they prevent fluid leakage and maintain pressure, ensuring the piston can slide smoothly within the barrel.

What Is a Piston Rod?

  • Power to the outside: The piston rod is a robust shaft rigidly connected to the piston. One end extends outside the cylinder, providing the point where external tools or attachments connect to utilize the cylinder's power.
  • Strength and smoothness: The piston rod must be exceptionally strong to withstand the forces exerted by the cylinder. Additionally, a smooth surface is vital to prevent damage to internal seals.

How They Work Together

  • Pressure in: When hydraulic fluid enters the cylinder, it exerts pressure against the piston.
  • Motion out: This pressure forces the piston to move. As the piston moves, the attached piston rod either extends or retracts.
  • Work happens: The linear force generated by the piston and rod is transmitted to the attached tool or equipment, enabling actions like lifting, pressing, or moving objects.
Think of it this way: Imagine the piston as the engine within the cylinder. The piston rod acts like a driveshaft, transferring the generated power to perform real-world tasks.

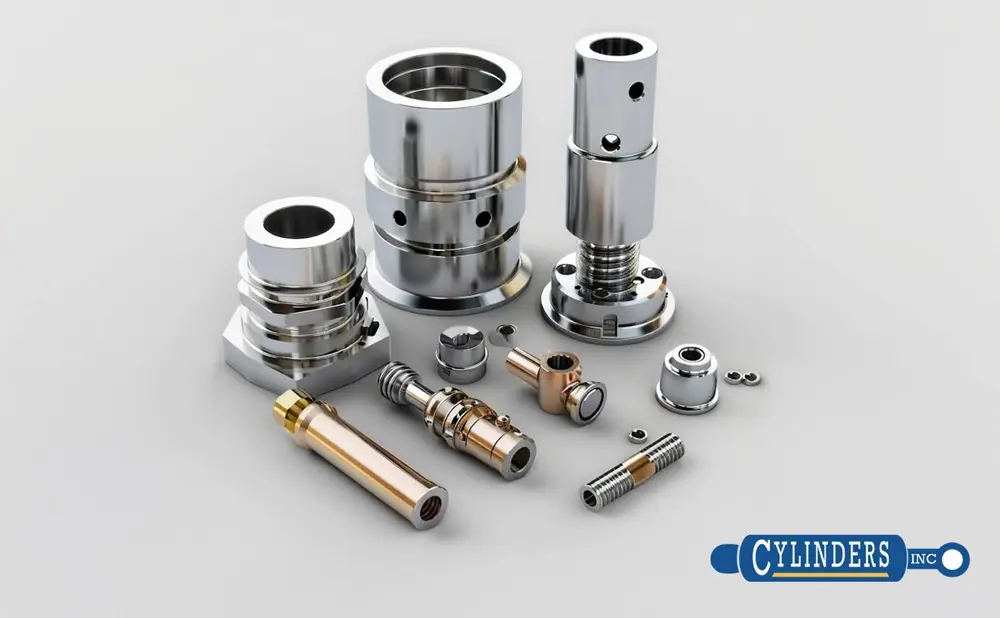

Cylinder Head and Cap

What Are Cylinder Heads and Caps?

  • The end seals: The cylinder head (or gland) and cap function as the end seals for the cylinder barrel. They contain pressurized hydraulic fluid, preventing leaks and ensuring proper system function.
  • Connection points: Hydraulic fluid enters and exits the cylinder through ports located on the head and cap.
  • Rod gland: The cylinder head features a specialized seal arrangement around the piston rod. This prevents fluid leaks even as the rod extends and retracts.

Why They Matter

  • Pressure control: A hydraulic cylinder relies on the head and cap to maintain a tight seal, enabling the necessary pressure buildup for effective operation.
  • Contamination protection: The head, especially the rod gland component, safeguards the cylinder's internal components. It blocks dirt and debris from entering and causing potential damage.

Additional Things to Know

  • Materials: Heads and caps are typically made of metal to withstand the same high pressures as the cylinder barrel. Seals can be composed of rubber, polyurethane, or other suitable materials depending on the specific fluid and operating environment.
  • Removable: They are often designed for easy removal, facilitating maintenance tasks, and the replacement of internal cylinder parts.

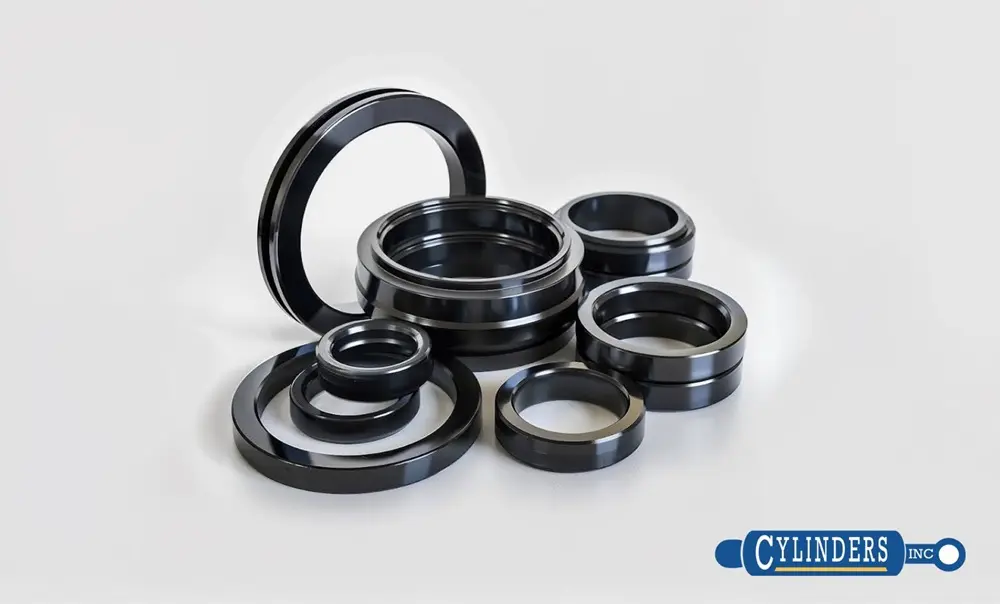

Seals and Rings

What Are Seals and Rings?

  • Leak stoppers: Seals and rings are the unsung heroes of hydraulic cylinders. Their primary function is to prevent hydraulic fluid from escaping the system, maintaining the pressure needed for effective operation.
  • Shape matters: Seals come in a variety of shapes to suit different parts of the cylinder, including:
    • O-rings: These versatile, round rubber rings fit into grooves, providing a static seal between non-moving parts.
    • Piston seals: Fitted directly onto the piston, they create a tight seal against the cylinder barrel.
    • Rod seals: Located in the cylinder head, these seals form a barrier around the piston rod, preventing leaks even as it moves.
    • Specialty seals: Various other seal shapes exist for specialized functions and high-pressure applications.

Why Seals and Rings Matter

  • Pressure = power: Hydraulic cylinders rely on seals to maintain internal pressure, which directly translates to the force they can generate. Leaks compromise efficiency and reduce power.
  • Preventing damage: Leaking fluid can contaminate the hydraulic system, potentially damaging other components and leading to costly repairs.
  • Long system life: Robust seals are crucial for minimizing premature wear and tear on the cylinder's internal parts, extending its lifespan.

Additional Things to Know

  • Materials matter: Seals are manufactured from various materials like rubber, plastics, and sometimes even metal. Selecting the right material is vital and depends on the specific fluid, operating temperatures, and pressures within the cylinder.
  • Wear and tear: Seals are considered wear items, meaning they will eventually need replacement even with the best maintenance practices. Be on the lookout for leaks, as they are often the first sign of a failing seal.

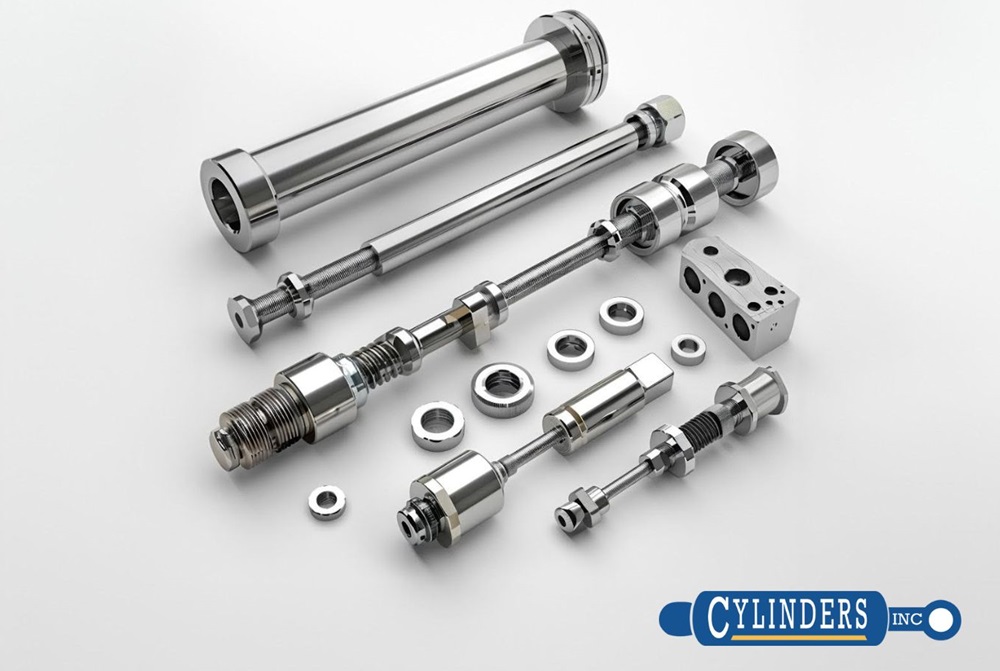

Rod End and Base End

What Are Rod Ends and Base Ends?

  • Attachment points: The rod and base ends of a hydraulic cylinder are its primary connection points to the rest of the machine.
    • Rod end: This is where the piston rod extends from the cylinder, typically connecting to the component the cylinder is designed to move.
    • Base end: The opposite end of the cylinder, often serving as the fixed mounting point for attachment to the machine's structure.
  • Designed for flexibility: Rod and base ends come in various configurations to accommodate different applications and mounting requirements:
    • Threads: Allow for secure attachment to brackets or other components with matching threads.
    • Flanges: Provide a flat mounting surface with bolt holes for a robust connection.
    • Clevis mounts: Offer a pivoting connection point, allowing the cylinder to adjust its angle slightly during operation.
    • Specialized types: Numerous other mounting options exist, tailored to the specific needs of the cylinder and the equipment it serves.

Why They Matter

  • Secure connection: A strong and stable connection at the rod and base ends is essential for safe cylinder operation. It prevents excess stress on the cylinder and other machine components.
  • Adaptability: Varied mounting styles enhance the versatility of hydraulic cylinders, allowing them to be integrated into a wide range of machines and applications.
  • Maintenance access: The base end often features a removable design, facilitating maintenance and repair of the cylinder's internal components.

Additional Notes

  • Wear and tear: Regularly inspect rod and base end connections for signs of wear, misalignment, or loose fittings. Addressing these issues promptly helps prevent more serious problems.
  • Cylinder types: Specialized cylinder designs, such as telescopic cylinders, may feature unique mounting configurations.

The Power Within: A Look Inside Hydraulic Cylinders

Let's delve a bit deeper into the internal workings of a hydraulic cylinder. Understanding these details can lead to smoother operation and a longer lifespan for your equipment:

Piston Rod Power

The piston rod, the link between the cylinder's internal force and the task at hand, needs to be exceptionally strong. High-strength materials and specialized coatings help it withstand wear and harsh operating environments.

Seals - More than Meets the Eye

The seal gland, located in the cylinder head, houses multiple seals working in tandem. These seals keep the hydraulic fluid inside and prevent contaminants from entering, ensuring efficient operation. Selecting seals designed for your specific hydraulic system's pressure and operating environment is critical.

Single-Acting Simplicity

In contrast to double-acting cylinders, single-acting cylinders generate force in only one direction. They often rely on a spring or external force to return the piston. Single-acting cylinders are used in specialized applications where force is not required in both directions.

Tie Rods: Strength in Numbers

Tie rod cylinders use sturdy external rods to hold the cylinder's end caps in place. This design is frequently favored for lighter-duty applications or situations where easier maintenance is a priority.

Why this matters: While the basic components we've covered are present in all hydraulic cylinders, understanding these finer points will guide you in choosing the right cylinder for the task. It also helps you identify potential issues before they lead to costly downtime.

Questions? Cylinders, Inc. Has Answers!

Grasping the function of each component within a hydraulic cylinder is key to ensuring long-term performance and efficient operation. Whether you handle maintenance yourself or work with a professional, this knowledge will help you troubleshoot effectively, make repairs, and keep your machinery working at its peak.

Need help? Cylinders, Inc. is here to assist! For expert guidance or further questions, don't hesitate to reach out.
