An Essential Guide to Hydraulic Cylinder Preventive Maintenance

In the high-stakes world of industrial machinery, the hydraulic cylinder is a critical component, converting hydraulic power into the mechanical force necessary to move mountains, both literally and figuratively. The efficiency, safety, and reliability of heavy equipment across various industries — from construction to manufacturing — depend on the seamless operation of these hydraulic cylinders. At Cylinders Inc., we understand the importance of maintaining these vital components in optimal condition.

Situated in Lisle, Illinois, our facility is at the heart of industrial innovation. Our women-owned business provides insights and services tailored to ensure the longevity and efficiency of your hydraulic systems. This comprehensive guide delves into the nuances of hydraulic cylinder preventive maintenance, giving you the knowledge to avoid costly breakdowns and keep your equipment operating smoothly.

Understanding Hydraulic Cylinders

Hydraulic cylinders are the lifeblood of many hydraulic systems, offering precision control and force that other mechanical means simply cannot match. These cylinders work by transferring hydraulic fluid under pressure into mechanical force, enabling the movement and control of heavy loads with ease.

The components of a hydraulic cylinder, including the cylinder rod, piston, seals, and hydraulic fluid, work in harmony to achieve this task. Yet, like any finely tuned system, they need regular maintenance to prevent wear, leaks, and eventual failure.

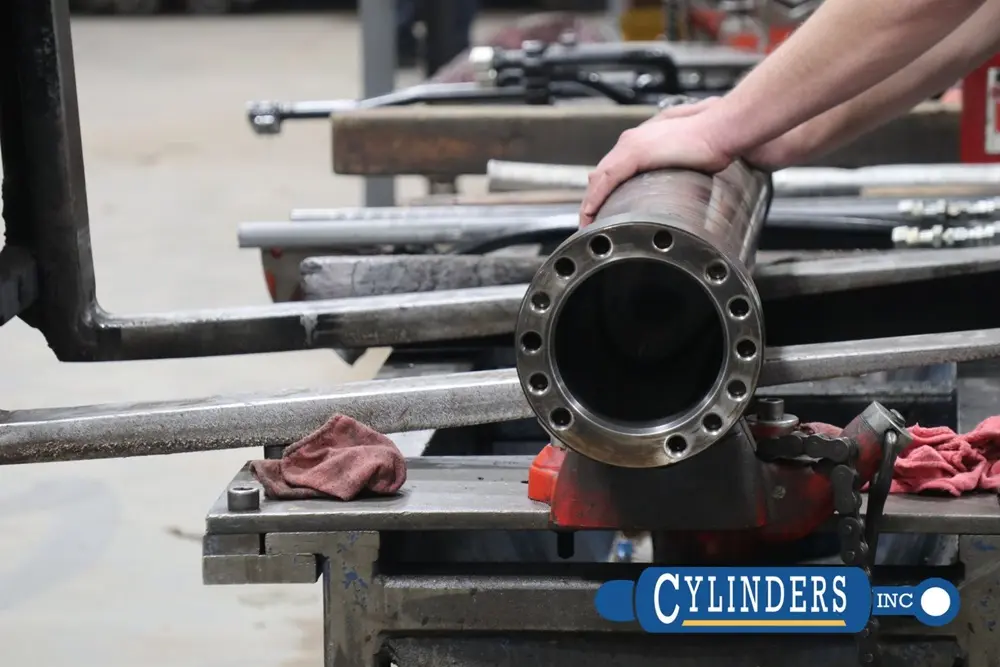

What Is Preventive Maintenance in Hydraulic Systems?

Preventive maintenance refers to the scheduled inspection and servicing of equipment to prevent sudden failures and extend service life. In hydraulic systems, this involves tasks such as checking fluid levels, inspecting hoses and connections for leaks, replacing worn-out parts before they fail, and ensuring that the system operates within its specified parameters. The goal is to identify and rectify potential issues before they escalate into serious problems that could lead to equipment downtime, costly repairs, or safety hazards.

The Most Important Maintenance Task in a Hydraulic System

If one were to single out the most important maintenance task within a hydraulic system, it would undoubtedly be maintaining clean and contamination-free hydraulic oil. The hydraulic fluid not only transmits power but also lubricates, cools, and cleans the system.

Contaminated fluid can lead to a myriad of problems, including component wear, corrosion, and decreased efficiency. Regularly checking and replacing hydraulic oil and filters can prevent these issues to ensure the system operates at peak performance.

How Often Should Hydraulic Cylinders Be Inspected?

How often your hydraulic cylinder needs inspection depends on the application, environment, and usage intensity. However, a good rule of thumb is to conduct thorough inspections at least annually, with more frequent checks (monthly or quarterly) for cylinders in high-use or critical applications. These inspections should include examining the cylinder rod for signs of wear or damage, checking for leaks, and ensuring that all seals and joints are in good condition.

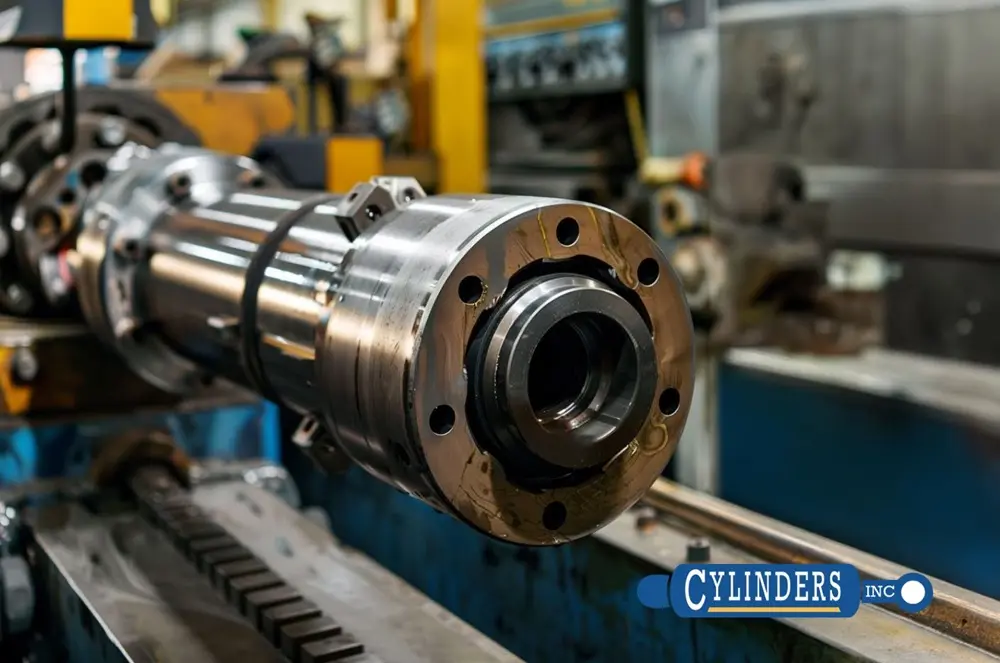

Essential Maintenance Insights for Hydraulic Cylinders

Achieving excellence in hydraulic system maintenance means focusing on the core practices that ensure the longevity and reliability of hydraulic cylinders. These practices help to maintain hydraulic systems at their peak performance. We take a refined approach that focuses on the value of maintenance practices without referencing external sources.

Emphasizing Lubrication and Fluid Management

Proper lubrication and fluid management are cornerstones of hydraulic system maintenance. Making sure that hydraulic systems are correctly lubricated and that the hydraulic fluid is clean and at the appropriate levels can significantly impact the system's efficiency and longevity. Regular checks and maintenance of these aspects help prevent overheating, contamination, and component failure, helping to improve the hydraulic system’s overall health.

Highlighting the Significance of Routine Maintenance Checks

Regular maintenance routines can significantly impact the health of a hydraulic system, including fluid checks and system cleaning. By dedicating attention to these practices, it’s possible to mitigate the risks of contamination and wear, which are common culprits behind system inefficiencies and failures. Establishing a schedule for these checks can lead to improved system performance and extended equipment life.

By adopting a proactive approach to maintenance, emphasizing the importance of lubrication, and prioritizing regular checks and cleaning, we ensure the hydraulic systems operate smoothly. This focus on maintenance excellence underpins our commitment to delivering reliable and efficient hydraulic solutions.

Practical Steps for Hydraulic Cylinder Maintenance

Maintaining hydraulic cylinders involves several key steps that improve their longevity and optimal performance. We’ve outlined key steps to address the common issues that can lead to cylinder failure, including contamination, wear, and improper lubrication.

1. Regular Inspection and Cleaning

• Visual inspection: Regularly inspect the hydraulic cylinder for any signs of wear, damage, or corrosion. Special attention should be given to the cylinder rod, as damage here can compromise the system's integrity. Look for scratches, dents, or any signs of uneven wear that might indicate a misalignment in the system.
• Cleaning: Keeping the cylinder and surrounding area clean from dirt, debris, and any foreign materials is crucial. This prevents contaminants from entering the system, which can cause damage and reduce efficiency.

2. Check Fluid Levels and Quality

• Fluid level: Ensure that the hydraulic fluid is at the correct level. Low fluid levels can lead to air entering the system, causing damage and reducing efficiency.
• Fluid quality: Regularly check the hydraulic fluid for signs of contamination, such as water or particulate matter. Contaminated fluid should be replaced immediately to prevent further damage to the system.

3. Seal and Lubrication Maintenance

• Seal inspection: Inspect the seals for any signs of wear or damage. Damaged seals are a common cause of fluid leakage and should be replaced promptly to prevent further issues.
• Lubrication: Proper lubrication of the cylinder rod and other moving parts is essential to reduce friction and wear. Ensure that the lubrication is appropriate for the system and environment in which it operates.

4. Pressure and Alignment Checks

• Pressure: Operating the hydraulic system within its recommended pressure range is vital to prevent excessive wear and potential failure. Regularly check the system's pressure and adjust as necessary.
• Alignment: Ensure that the hydraulic cylinder and its components are correctly aligned. Misalignment can cause uneven wear and tear which leads to premature failure.

Hydraulic Cylinder Maintenance Schedule Template

Daily:

1. Visual inspection for leaks, damage, or unusual noise.
2. Check hydraulic fluid levels.
3. Clean the cylinder and surrounding area.

Weekly:

1. Inspect the cylinder rod for signs of wear, damage, or corrosion.
2. Check for proper lubrication of the cylinder rod and pivot points.
3. Ensure proper alignment of cylinder and components.
4. Monitor system pressure and adjust as necessary.

Monthly:

1. Perform a thorough cleaning of the cylinder and surrounding area.
2. Check the condition of seals and replace if necessary.
3. Inspect hoses and fittings for wear, damage, or leaks.
4. Test the functionality of the cylinder under load.
5. Check the hydraulic fluid quality and replace if contaminated.

Quarterly:

1. Conduct a comprehensive inspection of the entire hydraulic system.
2. Perform oil analysis to check for contamination or degradation.
3. Replace hydraulic fluid filters.
4. Inspect and clean the reservoir, breather cap, and fill strainer.
5. Check the calibration of pressure gauges and sensors.

Semi-annually:

1. Perform a detailed inspection of cylinder components, including the piston, rod, and bore.
2. Check for any signs of internal wear or damage.
3. Conduct non-destructive testing (NDT) as necessary.
4. Replace worn or damaged components.
5. Recalibrate pressure relief valves and other safety devices.

Annually:

1. Conduct a complete overhaul of the hydraulic cylinder.
2. Replace all seals, wear rings, and bearings.
3. Inspect and replace any worn or damaged components.
4. Perform a full system flush and replace hydraulic fluid.
5. Document all maintenance activities and findings.

Note: This template is a general guide and should be adapted to suit the specific requirements of your equipment and application. Always refer to the manufacturer's recommendations and consult with hydraulic system experts like those at Cylinders Inc. for personalized guidance on maintaining your hydraulic cylinders.

Download that checklist ⬇

Additional Considerations

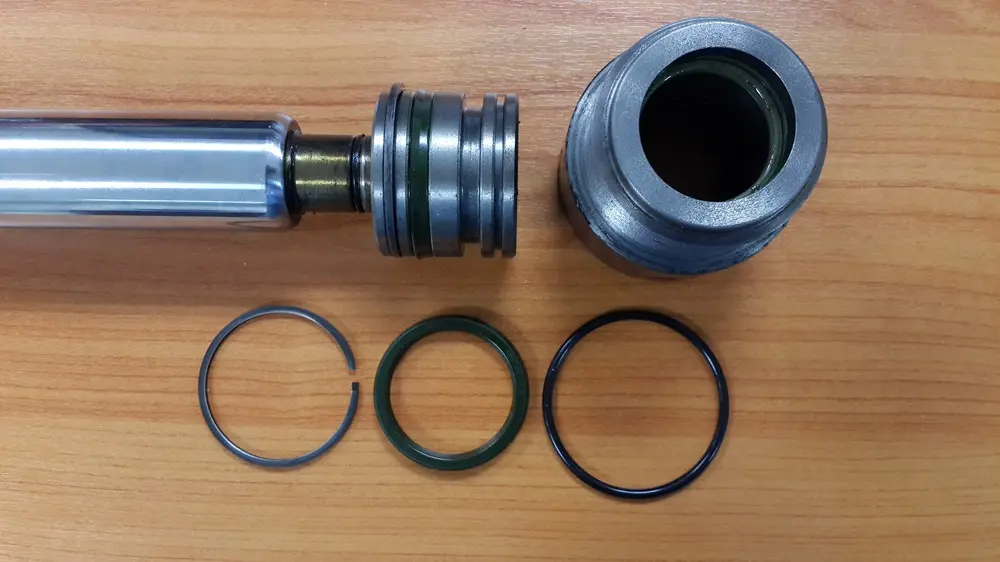

Maintaining Cylinder Tube and Piston Rod Integrity

The cylinder tube and piston rod are central to the hydraulic cylinder's operation. Maintaining their integrity is vital for ensuring optimal performance. Inspect the cylinder tube for any signs of wear, corrosion, or damage that could impair the hydraulic cylinder's efficiency. Similarly, check the piston rod for bent rods, scratches, or any deformations.

These issues can lead to oil leaks and decreased performance. Regular inspections and preventative maintenance practices, such as polishing the rod and ensuring the cylinder tube is free from contaminants, play a crucial role in extending the life of these components.

Hydraulic Equipment: A Comprehensive Approach

Hydraulic equipment maintenance extends beyond the cylinder to include the entire system. Regularly checking for oil leaks across the system can prevent minor issues from becoming major problems. Utilizing a differential pressure gauge to monitor filter health is a proactive step towards maintaining clean oil, crucial for ensuring optimal performance of the hydraulic system.

Addressing Wear and Tear: Rod Seals and Pivot Pins

Rod seals and pivot pins are susceptible to wear and can significantly impact the performance and reliability of hydraulic cylinders. Checking and replacing worn rod seals is essential to prevent fluid leakage and maintain system pressure. Similarly, inspecting pivot pins for wear and ensuring they’re properly lubricated will prevent misalignment and potential damage to the cylinder.

Leveraging Preventative Maintenance for Long-Term Success

Preventative maintenance is not just about fixing problems before they occur; it's about adopting a holistic approach to hydraulic system care. This includes regular inspections, timely repairs, and a commitment to maintaining the system by manufacturer recommendations. By embracing a comprehensive maintenance strategy, businesses can avoid costly downtime, extend the service life of their equipment, and maintain the efficiency and reliability of their hydraulic systems.

Hydraulic Cylinder Repair and Replacement

When preventative maintenance identifies significant issues, such as bent rods or severe wear, hydraulic cylinder repair or even the introduction of a new cylinder may be necessary. Repairs should address not only the immediate damage but also underlying issues that could lead to future failures. In some cases, replacing the cylinder with a new one might be the most cost-effective solution for optimal performance and reliability.

Common Challenges and Strategies for Implementing a Preventive Maintenance Program

While the benefits of a preventive maintenance program for hydraulic cylinders are clear, implementation can come with its own set of challenges. Here are some common obstacles businesses may face and strategies to overcome them.

1. Limited Resources

Challenge: Many businesses may struggle with allocating sufficient time, personnel, or financial resources to implement a comprehensive preventive maintenance program.

Strategy: Start small and prioritize critical equipment. Focus on the most essential hydraulic cylinders and gradually expand the program as resources allow. Consider outsourcing maintenance tasks to experienced professionals like ours at Cylinders Inc. to optimize resource allocation.

2. Resistance to Change

Challenge: Implementing a new maintenance program may face resistance from employees who are accustomed to reactive maintenance practices or are skeptical about the benefits of preventive maintenance.

Strategy: Educate your team about the importance and long-term benefits of preventive maintenance. Provide training and involve employees in the planning and execution of the program. Celebrate successes and share data that demonstrates the positive impact of the program on equipment reliability and cost savings.

3. Lack of Expertise

Challenge: In-house maintenance teams may lack the specialized knowledge and skills required to effectively maintain hydraulic cylinders.

Strategy: Invest in training and education for your maintenance team. Partner with experts like Cylinders Inc. to provide guidance, support, and specialized services. Encourage knowledge sharing within the team and develop a culture of continuous learning.

4. Inconsistent Execution

Challenge: Inconsistent execution of maintenance tasks can undermine the effectiveness of the preventive maintenance program.

Strategy: Develop clear, standardized procedures for each maintenance task. Use checklists and logs to ensure consistency and accountability. Regularly review and update the program based on data and feedback from the maintenance team and equipment operators.

5. Balancing Production Demands

Challenge: Balancing the need for regular maintenance with production demands can be challenging, as taking equipment offline for maintenance can impact productivity.

Strategy: Schedule maintenance tasks during planned downtime or off-peak hours to minimize disruption to production. Use predictive maintenance techniques, such as condition monitoring, to optimize maintenance intervals and avoid unnecessary downtime. Collaborate with production teams to plan maintenance activities that align with production schedules.

By anticipating and addressing these common challenges, businesses can develop a more resilient and effective preventive maintenance program for their hydraulic cylinders. Remember, the key to success is a combination of careful planning, employee engagement, and continuous improvement. With the right strategies and support from experts like Cylinders Inc., your business can overcome these obstacles and reap the benefits of a well-executed preventive maintenance program.

Scheduled Professional Maintenance

While routine maintenance can be performed in-house, having a professional service inspect and maintain your hydraulic cylinders offers a deeper level of expertise and peace of mind.

Experts like ours at Cylinders, Inc. can offer thorough evaluations that include advanced diagnostics and repair services that go beyond basic maintenance. Leveraging the strategic location of our facility in Lisle, Illinois, we serve a range of industries with tailored maintenance solutions that keep your hydraulic systems running smoothly. For more information, please contact us!

Conclusion

Preventive maintenance is the cornerstone of ensuring the longevity and reliability of hydraulic cylinders. By adopting a proactive approach to maintenance, businesses can avoid costly downtime, extend the service life of their equipment, and ensure the safety and efficiency of their operations.

Remember, the health of your hydraulic cylinders directly impacts the overall performance of your hydraulic systems. Regular inspections, proper maintenance, and professional servicing can help you avoid costly breakdowns and help your machinery operate as it should.
